Multi-VLAN OpenWrt at Scale: Eliminating Double NAT in Dense WiFi Networks

The Challenge

Running a multi-VLAN OpenWrt network in a dense WiFi environment is complex. After months of managing a DIR-878 router handling 50+ devices across three VLANs with bandwidth shaping, I identified a critical bottleneck: double NAT on guest and private networks. This post documents the architecture, root causes, and optimization strategy.

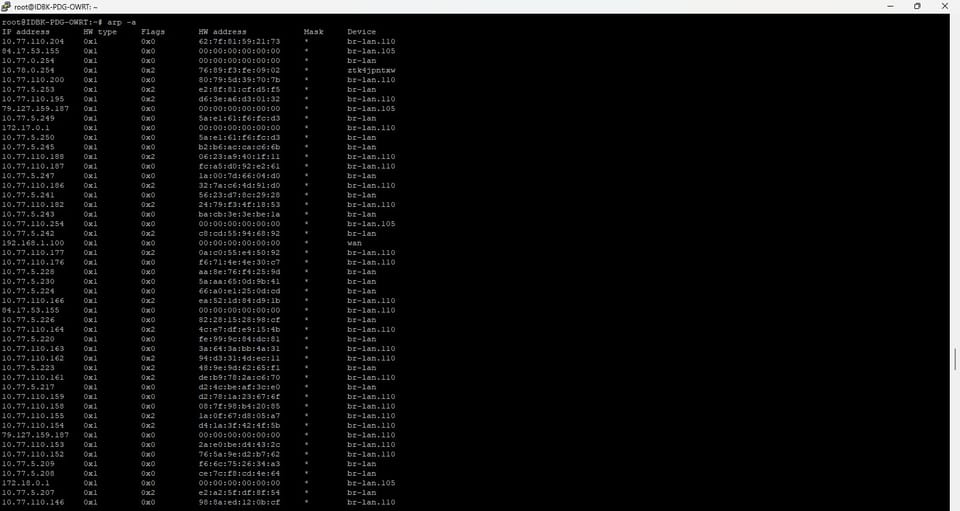

Current Setup

Infrastructure:

• Core: DIR-878 OpenWrt 23.05 (10.77.5.254/24 gateway)
• ISP: Indihome 50Mbps down / 8Mbps up
• Access Points: Ruijie RAP52-OD + 2× BOLT BL201 (BoluWRT)
• VLANs: 3 segments (internal, guest voucher, private)
• Load: 50-80 concurrent devices, dense urban WiFi interference

Network Segments:

The Problem: Double NAT

Current Architecture

Client Device
↓
SSID: RM-CX01 (from RAP52-OD)
↓
BOLT BL201 #1 captures signal
↓
FIRST NAT: BOLT applies 192.168.1.1 NAT
↓
Client gets 192.168.1.100-200
↓
Upstream to DIR-878
↓
SECOND NAT: DIR-878 masquerades traffic
↓
Result: 2 translation layers + 3 total with ISP

Why This Breaks at Scale

Conntrack Collapse: With 50+ devices in VLAN 110 (59M observed packets):

• Each device creates 5-10 concurrent connections
• BOLT NAT state table fills rapidly
• Old sessions dropped without graceful closure
• Clients see abrupt disconnections

Roaming Failure: When device moves between AP coverage areas:

• BOLT NAT session expires
• Device keeps old session state
• TCP retransmit timeout (3+ seconds)
• User experiences connection drop

SQM Ineffective: Bandwidth shaping configured at DIR-878 level:

• Can't see individual client flows (hidden behind BOLT NAT)
• Limits aggregated BOLT traffic, not per-client
• Result: 1 user's full-speed download starves all others

Upload Bottleneck: With only 8Mbps upstream:

• NAT overhead adds 10-15% CPU load on BOLT
• Available throughput: 6.8Mbps max
• Under concurrent load → buffer bloat → 200-500ms latency spikes

Real-World Impact

Observed metrics:

• Latency to NVR: 50-150ms (normal: <10ms)
• Packet loss: 2-5% under load
• Roaming stability: Frequent disconnections
• Concurrent stable users: 5-8 (capacity: 50+)
• Upload speed: 2-3Mbps actual (ISP provides 8Mbps)

The Solution: Relay Bridge Mode

Concept

Convert BOLT BL201 routers from NAT mode → transparent relay bridge:

BEFORE (3 NAT layers):
Client → AP → BOLT NAT → DIR-878 NAT → ISP NAT

AFTER (1 NAT layer):
Client → AP → BOLT Bridge (transparent) → DIR-878 NAT → ISP NAT
Client IP: 10.77.110.x (from DIR-878 DHCP directly)

Benefits

• ✅ Seamless roaming: Single network domain, client maintains IP
• ✅ Latency reduction: 50-150ms → 5-10ms (80-90% improvement)
• ✅ SQM effectiveness: DIR-878 sees individual flows, fair queueing works
• ✅ Upload speed: 2-3Mbps → 5-7Mbps (better WAN utilization)
• ✅ Scalability: Stable 15-20+ concurrent users (was 5-8)

Technical Details

Bridge Mode: BOLT acts as transparent WiFi-to-Ethernet bridge

• Captures upstream WiFi SSID (RM-CX01 from RAP52-OD)
• Relays traffic without NAT translation
• Devices receive IPs from DIR-878 DHCP
• Firewall/QoS applied once at gateway

Why BoluWRT Works: BoluWRT is OpenWrt-based firmware for BOLT BL201:

• MediaTek MT7620A chipset fully supported
• Relay bridge daemon (relayd) available
• Multiple implementations: relay, WDS, client bridge
• Proven: thousands of deployments documented

Implementation Plan

Phase 1: Convert BOLT #1 (VLAN 110)

Timeline: 20-30 minutes
Method: LuCI Web UI (recommended) or SSH CLI
Risk: Low—quick rollback possible

Steps:

1. Backup current config: scp -r /etc/config root@laptop:/backups/
2. Access BOLT LuCI: http://192.168.1.1
3. Network → Interfaces → New Interface
4. Create wwan interface (WiFi client mode)
5. Create relay_bridge protocol linking lan + wwan
6. Install packages: relayd, luci-proto-relay
7. Configure firewall zones (bridge zone containing both networks)
8. Reboot and verify

Verification:

• Device in RM-C01 SSID gets 10.77.110.x IP
• ping 10.77.5.100 (NVR) responds <10ms
• No packet loss on continuous ping
• Roaming between APs seamless

Phase 2: Convert BOLT #2 (VLAN 105)

Same process for RM-C02 SSID.

Phase 3: Monitor & Optimize

• Watch latency, throughput, roaming behavior
• Adjust SQM if needed (optional: VLAN 110: 4Mbps → 5Mbps)
• Consider firmware upgrade to OpenWrt 23.05 (kernel 6.1)

Expected Performance Gains

Technical Specs

Current SQM Config (DIR-878)

VLAN 110: CAKE qdisc, 4Mbps shared, triple-isolate
VLAN 105: CAKE qdisc, 5Mbps shared, triple-isolate

Current Firewall

iptables NAT table unavailable (nftables/iptables mismatch). Will auto-correct during bridge setup.

DHCP Pools

• VLAN 1: 10.77.5.202-252 (50 IPs, 12h lease)
• VLAN 110: 10.77.110.100-200 (100 IPs, 12h lease)
• VLAN 105: 10.77.105.10-200 (190 IPs, 1h lease)

What Doesn't Change

• DIR-878 config (mostly unchanged)
• RAP52-OD settings (continues broadcasting all SSIDs)
• VLAN topology (3 segments remain)
• SQM bandwidth limits (stay at 4-5Mbps per VLAN)

Next Steps

This week:

1. Backup BOLT configurations
2. Convert BOLT #1 to bridge mode
3. Test for 4+ hours (roaming, latency, throughput)
4. Convert BOLT #2 if stable

Next month (optional):

• Upgrade BOLT firmware to OpenWrt 23.05
• WiFi channel optimization (separate 2.4GHz/5GHz SSIDs)
• Per-MAC QoS refinement for priority traffic

Conclusion

Double NAT is fundamentally incompatible with high-density WiFi networks and SQM fairness. By converting to relay bridge mode, we eliminate 2/3 of NAT layers, reduce latency by 80-90%, and restore efficient bandwidth management.

The implementation is low-risk, supported by BoluWRT, and takes ~50 minutes total. Expected result: stable 15-20+ concurrent users with seamless roaming and fair per-device bandwidth allocation.

Next post: Detailed step-by-step BoluWRT bridge mode setup guide with LuCI and CLI instructions.
